Activity redesign: responsive split view, failure containment, review hardening (follow-on to #2388)#2434

Closed
myieye wants to merge 65 commits into
developfrom
claude/activity-redesign-review-vpaqmr
Closed

Activity redesign: responsive split view, failure containment, review hardening (follow-on to #2388)#2434
myieye wants to merge 65 commits into
developfrom
claude/activity-redesign-review-vpaqmr

Conversation

@myieye

@myieye myieye commented Jul 12, 2026

Copy link
Copy Markdown
Collaborator

This branch is #2388 (the activity view rework — readable summaries + before/after diff, resolves #2170) plus a deep review-and-polish pass over the whole feature, with develop merged in. Merging this supersedes #2388; nothing here changes the feature's direction.

The layout question

@myieye wasn't fully convinced by the list+detail panels, and @hahn-kev showed the layout crushing the list to 8rem at narrow widths. I researched how version-history UIs handle this before touching it: tools where each item is a rich before/after of one artifact (Google Docs version history, Figma, Notion page history, VS Code Timeline) all converge on list + persistent diff pane, while list-only feeds (GitHub commits, Jira) fit events that are individually small or need their own URL. NN/g's accordion guidance argues against inline expansion for complex, comparison-heavy content, and Material 3 / Microsoft / PatternFly all say the same thing about narrow widths: don't shrink both panes, switch to single-pane at a breakpoint.

So the panel stays, and the narrow-width problem is fixed the way this app already fixes it in Browse:

  • Desktop: resizable split panes (same ResizablePaneGroup as Browse, 35/65 default) instead of the fixed minmax(8rem,25%) grid. Newest commit auto-selects, so the page opens answering "what changed recently?".
  • Below the mobile breakpoint (768px — also covers the narrow-window screenshot from review): full-width list; tapping a row opens the detail full-screen with a close button; detailOpen is a query param like Browse's entryOpen, so the platform back button closes it. Nothing auto-selects on mobile.

Robustness

The "opening this row breaks the whole activity page" report is now contained twice over: the view is wrapped in the app's ViewErrorBoundary, and each change card's {#await} has a {:catch} that renders an inline "Failed to load this change" card instead of leaving a blank 700px row (template catch, not try/catch — the global-handler rule is respected). I could not reproduce the original crash on this branch (deleting an entry and opening its row works — screenshot below), so the root cause was likely fixed during #2388's iteration; the containment is there for whatever the next bad row is. The homograph-patch summary from review now reads "wulu₁ · Set homograph number to 1".

API / backend changes

  • HistoryService.ProjectActivity returns Task<ProjectActivity[]> instead of IAsyncEnumerable — the label resolver already materializes the page and every consumer did too (flagged in Rework the activity view: readable summaries and a before/after diff #2388's own notes). Wire shape is unchanged; the JS interop signature changed with regenerated types.
  • ChangeTypesCodeGenerator now calls HistoryService.GetChangeTypeKeyFromType (made public) instead of duplicating the TypeName reflection, so the generated ChangeType union can't drift from the runtime $type discriminators.
  • The resolver no longer emits a hardcoded English "sense" subject for a label-less sense; it degrades to null like every other unresolved label and the frontend omits the token (new backend test pins this).

Cleanups

Deleted the storybook-only DiffValue component; DiffRichText now delegates to DiffMultiString instead of duplicating its layout; ActivityListViewOptions renamed to ActivityViewPicker (it only picks the view — the Simple/Detailed list mode it was named for no longer exists, and the two stale references to that mode are gone); the audio diff's added/removed boxes carry screen-reader labels (colour was the only cue); changeType() is exported from change-summary instead of re-implemented in ActivityItem.

Test hardening

  • vocab-diff-coverage now parses DiffVocabPrimitive's actual present('…') rows instead of a hand-maintained set — dropping a row now fails the test (the direction that would have caught the historical MorphType-description bug), with a reverse stale-row check.
  • Table-driven describeChange cases for the payload-picking handlers that had none (ReplacePublicationChange reads newPublication where Add reads publication — exactly the kind of thing that deserved a pin), translations, component links, vocab patch clears.
  • Pinned the deliberate recognizer asymmetry: an entry-creation commit collapses even when mixed with same-root edits; a sense-creation commit must be pure.
  • New backend test for the null sense-subject degrade.

Test evidence: LcmCrdt.Tests HistoryServiceActivityTests 36/36 pass; viewer vitest for activity + diff-view + coverage suites 90+ tests pass; svelte-check and eslint clean; FwLiteShared builds with regenerated types committed (no drift); i18n extraction round-trips cleanly, and new msgids got translator-context comments per I18N_CONTEXT_GUIDE (30 added, 6 judged self-explanatory).

E2E: ran FwLiteWeb + vite against the example project, made real edits (field edits, new sense, homograph pair, entry deletion) and exercised the activity view in both layouts with zero page errors.

Screenshots

Desktop split view (delete-commit selected, deletion wash, grouped rows with the homograph line):

desktop split view``

Collapsed create-entry tree card:

created entry collapsed card``

Mobile: full-width list → tap → full-screen detail with close:

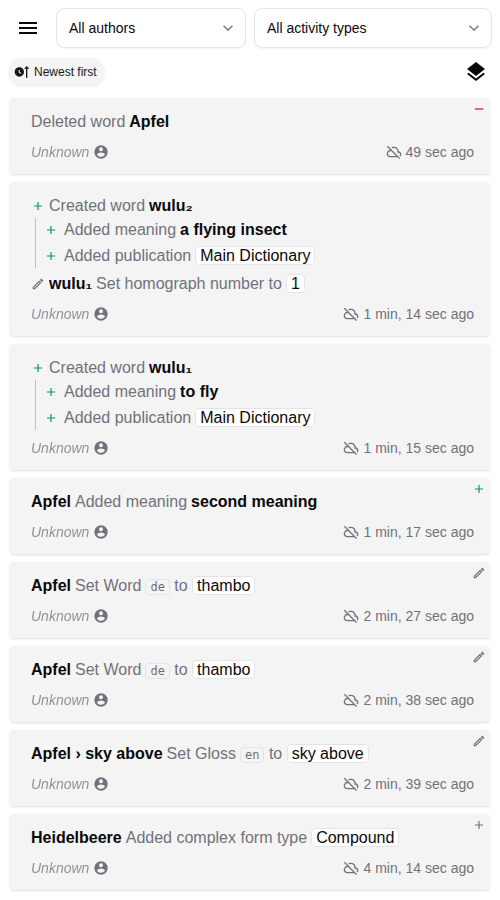

mobile list

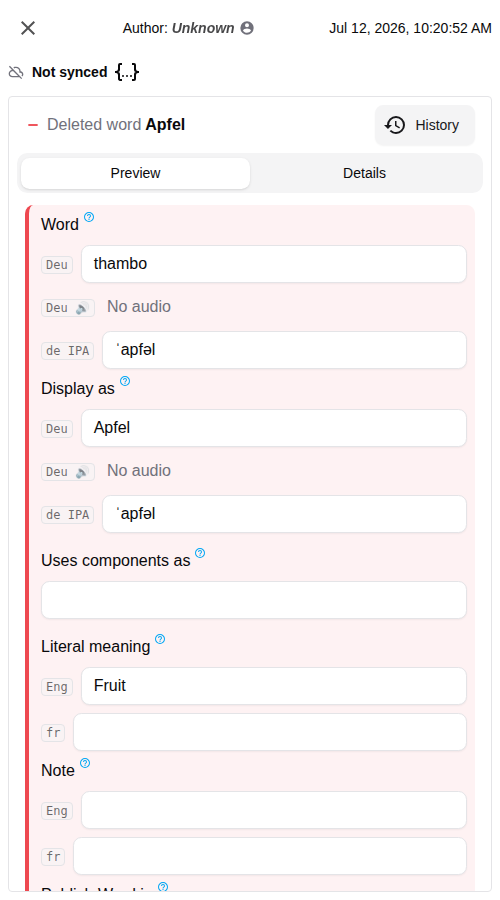

mobile detail

History dialog from a change card:

history dialog

(Screenshots were committed at cc47568 and reverted in the next commit so they don't live on the branch.)

Notes for reviewers

  • The three red argos statuses are the expected "changes detected — waiting for your decision" baseline approvals: this PR deliberately changes the activity view's visuals (4 UI + 7 e2e snapshots). All GitHub Actions workflows are green (the one FW Lite failure was a vstest testhost-connection timeout on a slow Windows runner; the re-run passed).
  • The QueryParamStateBool config snapshots IsMobile.value at construction (back-button semantics won't retrack if the viewport crosses the breakpoint mid-session). This faithfully mirrors Browse's entryOpen — a pre-existing pattern now shared by two views; worth a small shared fix someday, not in this PR.
  • No Playwright coverage for the activity view: the in-memory demo project has no history service, so the infra-free UI harness can't drive this page. Follow-up idea: give the demo a stub IHistoryServiceJsInvokable.
  • Known-good notes carried over from Rework the activity view: readable summaries and a before/after diff #2388 still apply (@sanity/diff-match-patch dependency, sentence-frame i18n tradeoff, WS-code chips app-wide).

🤖 Generated with Claude Code

https://claude.ai/code/session_01Vm9mEUzcfgX4oUPAbhcfsj

myieye and others added 30 commits June 29, 2026 16:13
…r diff

The activity list now says what actually happened in each change — e.g.
"Apfel › apple · Set Definition (en) to …", "Changed part of speech to Noun",
"Removed semantic domain 5.2 Food" — instead of just naming the change type,
with Simple and Detailed modes mirroring the browse view. The detail panel
shows a real before/after diff of the entry (a read-only reuse of the editor
layout) in place of the old current-version toggle.

Each summary names its subject (entry headword, "headword › gloss" for a
sense, a vocab object's name) and any item a change references only by id
(the part of speech set, the domain/component removed or linked). Entry
headwords carry their homograph number as a subscript when assigned. Those
names are resolved in one batched pass per page, so naming adds no per-row
queries.

The list of change types is generated from the backend via Reinforced.Typings
and a coverage test fails until every type has a summary.

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>
Two activity-summary wording tweaks, both prompted by review:
- A reorder now reads "<entry> · Reordered sense <gloss>" — the parent entry
  is the subject and the moved item is named — instead of "<entry> › <gloss> ·
  Reordered senses", which put one sense in the subject slot and read as if
  the whole list moved. Generalizes to examples and components: the parent is
  the subject, and the moved item is named when it has one.
- A field edit on a vocabulary object now names its type, e.g. "part of speech
  Noun · Set Abbreviation (en) to …", matching how the created/edited/deleted
  vocab lines already name the type.

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>
A commit that only builds one entry (its creation plus that entry's own
senses and fields) now renders as the finished entry in a read-only
EntryEditor, instead of a stack of per-change diff cards. It reads the
backend-resolved affectedEntries, so there's no change-by-change assembly
and no dependence on recognising every change type — an unfamiliar change
type can't break it. Other commits keep their per-change cards, and the
"(N changes)" header stays.

Adds a Storybook "activity/previews" gallery covering every preview pane
(entry/sense/example diffs, complex-form component, generic JSON, the
no-preview fallback) and the collapsed entry view, so these can be checked
without a live project.

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>
Large commits no longer render a line per change. A commit is classified from
cheap signals it already carries — its change-type keys, per-change root ids,
and count — without parsing every change: building one entry collapses to
"Created entry X", a batch of one create type collapses to "Created 100
semantic domains", and anything else lists the first changes (capped in
Detailed mode) with the rest counted. So a 100-change sync commit is one or a
few lines, and Simple mode never parses past the first change.

Tests to keep this honest as the model grows — covering both ends and the
"don't forget to handle it" cases:
- every create change type has a bulk-collapse noun (new guard);
- the view config covers every model field — a new field must be configured
  or explicitly excluded (new guard);
- every backend change type still maps to a summary, and diff primitives
  render exactly the configured fields (existing guards);
- backend: the resolver names a vocab subject and the referenced part of
  speech, alongside the existing homograph and reorder coverage.

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>
Pre-PR review follow-ups:
- export the two new generated types from the LcmCrdt barrel (index.ts)
- give the multi-key change-type filter test a positive count assertion so it
  can't pass vacuously on an empty result
- order multi-writing-system vocab labels by writing-system code, matching
  Entry.Headword(), so the shown alternative is deterministic
- SenseLabel is never null — drop the misleading nullable return
- remove the unused `activity` prop from ActivityItemChangePreview
- trim two design-rationale comments to their load-bearing part
- add translator context for the activity strings (Detailed, the Set-field
  lines, the "+N more" overflow) and broaden the shared "List mode" comment

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>
change-summary.ts keys are backend change-type discriminators and wire-format property names, all intentionally PascalCase, so disable naming-convention for the file (and the test's PascalCase payloads) rather than quoting ~50 keys. Reuse displayValue for span text instead of String()-ing an unknown, and drop an unused handler arg and an unused derived.

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>
ReplaceComplexFormTypeChange had a summary handler but the backend never emits it — the change class isn't registered, so it's absent from the generated knownChangeTypes. Remove the dead handler and add a reverse-coverage test: every handler must map to a real generated change type. Paired with the existing forward check (every known type is handled), the two force the handler back the moment the backend registers the type.

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>
- Headwords use the best non-audio writing system + morph-type markers, so created entries show a real headword instead of "(Unknown)"; truly headword-less entries show a clear "(no headword)" placeholder.
- Standardized wording (dropped inconsistent articles); data values render as subtle pills so they stand apart from the template text; long rows truncate instead of breaking the layout.
- Fixed the activity page blowing out when a row is expanded (detail column min-width:0, content scrolls/wraps).
- Homograph: a dedicated summary for the homograph-number patch, and the subscript now shows in the preview header.
- Collapse a sense-creation commit (sense + its examples) to one line.
- Moved the ChangeTypes generation marker out of a confusing public file into TypeGen (internal).

Tests (resolver best-WS/morph/empty; frontend sense-collapse + homograph patch), storybook galleries, and i18n context updated.

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>
…eviews, sense numbers

Builds on the merge of develop (new Sense.pictures field + 5 new change types) and addresses the round-2 review feedback + CodeRabbit:

- Handle the 5 develop-added change types (sense pictures ×4 + set-main-publication) with proper summaries; configure the new Sense.pictures field.
- Create-entry commit no longer blows out the page when expanded (the collapse-to-editor wrapper gets min-w-0/min-h-0 — the spot the earlier grid fix missed).
- VLists lazy-load properly (itemSize set) so a 19-change commit no longer loads all 19 at once.
- Resolver: project only the columns it reads (no heavy JSONB hydration), load morph types lazily/projected; sense subjects disambiguate by number ("… › sense 2" / "gloss (2)") for empty/duplicate glosses.
- Styled before/after previews for all 7 vocab object types (was raw JSON), guarded by a preview-entityType coverage test.
- View-aware activity nouns (Lite "word/meaning" vs Classic), matching the field labels.
- Sense-creation collapse only fires on a pure sense tree (won't hide a mixed edit).
- CodeRabbit: created-semantic-domain summary keeps its name (not just code); homograph subscript shows with the Untitled placeholder too; clarifying comment on the ChangeTypes discriminator fallback (it intentionally mirrors Harmony — failing fast there breaks SetPartOfSpeechChange).

Tests: resolver targets/reorders/vocab subjects/sense numbers; frontend new facts, collapse purity, semantic-domain label; preview-entityType guard. i18n extracted + context added.

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>
…-91bf15

# Conflicts:
#	frontend/viewer/src/locales/en.po
#	frontend/viewer/src/locales/es.po
#	frontend/viewer/src/locales/fr.po
#	frontend/viewer/src/locales/id.po
#	frontend/viewer/src/locales/ko.po
#	frontend/viewer/src/locales/ms.po
#	frontend/viewer/src/locales/sw.po
#	frontend/viewer/src/locales/vi.po
A delete change has a null snapshot, so the History button's
context.snapshot?.id was undefined and clicking it did nothing. Fall back to
context.previousSnapshot?.id (the pre-delete entity) so History works there too.

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>
…e preview, layout

Baseline checkpoint of the activity-view iteration before the design-review pass.

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>
…n dark mode

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>
…boxed data

Subject renders as a bold borderless token (the scannable element); the verb phrase inherits a muted container colour; data values stay as bordered chips. Drops the middot separators — the bold subject plus its trailing margin is enough separation.

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>
Detailed now groups a commit's facts by subject — the headword shows once as a bold header, its changes listed beneath along an indent rail — instead of repeating the subject on every line. Gives the two list modes distinct jobs (skim vs inspect) rather than just different lengths. Adds groupBySubject + a hideSubject prop on ChangeSummary; keyed by subject string so distinct senses of one entry don't wrongly fold together.

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>
- Multi-select diffs merge before/after into one sorted list, so a removed item keeps its sorted position instead of trailing the kept ones (e.g. a removed semantic domain by code).
- Audio-only example creates read as "with audio" instead of leaking the sil-media:// URI; firstAlternative now skips audio writing systems everywhere.
- The example Reference field is framed like the text input it is (DiffShell) rather than rendered as bare text.

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>
Any media value (audio-WS field or a sil-media:// value on any ws) now shows an audio marker — an i-mdi-volume-high icon plus "audio" — instead of leaking the media URI. Covers Set/Cleared field edits and audio-only example creates, and drops the unreadable audio ws code. First use of iconography in the summaries.

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>
The collapsed create-entry preview rendered the entry's CURRENT (possibly since-edited) state. Now it assembles the entry as-of the commit from that commit's own change snapshots: entry + its senses + their examples, in commit order. Part of speech is resolved from the id when the snapshot carries only that; semantic-domain names come denormalized from the sense snapshot.

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>
…eal editor

The collapsed create-entry preview used the real EntryEditor, so it looked unlike every other activity preview. Now a CollapsedEntryDiff composes the diff primitives (entry + senses + examples, nested like the editor via ObjectHeader) with no 'before', so a create reads as all-added — matching how a lone create-entry change already renders and unifying the panel's visual language.

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>
Resource changes were the confusing 'Create remote resource' (present tense, zero info). Now: create/upload/delete of a resource read as past-tense 'Added/Uploaded/Deleted audio recording' with the audio marker (kind inferred by correlating the resource id with a sibling audio-ws field-set in the commit), and the preview plays the resource via an audio player. The generic type fallback also past-tenses its leading verb so any future type reads consistently.

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>
DiffRichText/DiffMultiString filtered out audio writing systems entirely, so audio fields vanished from previews. They now render each audio ws through a new DiffAudio that plays the recording (via AudioInput), marking a replaced recording as removed. Also baseline-align the summary 'audio' chip: a plain inline span sits on the text baseline, where the previous inline-flex chip rode low.

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>
The resource-create/upload/delete commit now reads 'Added audio recording' with the audio marker, and its preview plays the recording. Two constraints drove this: the resource change carries no kind, and the field-set that would identify it as audio lives in a SEPARATE commit — so kind can't be derived cheaply (would need a file fetch). Audio is the only resource kind today, so we assume it (documented). The preview couldn't find the resource because RemoteResource isn't an IObjectWithId (null snapshot, entityType 'Unknown'); we now read the resource id off the raw change instead.

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>
…/remove

Empty audio delegates to AudioInput's own 'No audio' placeholder (matches the editor) instead of a blank. A replaced/removed recording now sits in a destructive-bordered surface above the added one in an emerald-bordered surface — a diff gutter reads better on a player than a line-through would. New surface-only palette tokens (bg tint, no text styling) for non-text diff content.

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>
A deleted component link is gone from the projection, so 'Removed component' had no headwords. Recover its endpoints from the create change (AddEntryComponentChange carries both entry ids) — two steps: load the CFC's changes, read the ids off the create — enough to name the complex form (subject) and component (target). Frontend renders the component target on the remove branch.

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>
Detailed rows now carry a coloured gutter glyph per change (added +, removed −, changed ✎, reordered ↕) for fast visual grepping down a commit — Simple mode stays a plain-sentence skim. The per-row change cap goes 10→50 since Detailed is the inspect view; still bounded because a row isn't internally virtualised. New pure factCategory() (tested) keeps the mapping out of the template.

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>
Custom-view previews now diff their field lists (entry/sense/example) and writing-system lists (vernacular/analysis) plus base — not just the name. A new vocab-diff-coverage test parses every vocab model's generated interface and asserts each property is either handled by DiffVocabPrimitive or explicitly ignored (vocab-diff-fields.ts) — so a new backend field can't silently vanish from the diff. The guard immediately caught WritingSystem.isAudio, now shown.

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>
DiffSelect drew the transition with a literal Unicode → ; use i-mdi-arrow-right like the rest of the icon system for consistent sizing and alignment.

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>
CustomView.base and WritingSystem.type rendered raw enum values ('FwLite', '0'). Map them to the app's usual names — 'FieldWorks Lite'/'FieldWorks Classic' and 'Vernacular'/'Analysis' — keyed by both the string name and numeric value so it works whichever the wire sends; unknown values still fall through to the raw text.

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>
Sense numbers are the sense's 1-based position, shown when an entry has more than one sense — independent of the gloss (FieldWorks' rule; homograph numbers, which key off identical headwords, stay separate). Replaces the old empty/duplicate-gloss subscript logic: >1 sense → "N gloss" (or "N" when gloss-less); a lone sense → its gloss or nothing.

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>
myieye and others added 8 commits July 7, 2026 09:54
The ws-code chip/preview text used text-muted-foreground, which on the
muted chip fill and muted dictionary-preview surface measured ~4.4:1 —
below the 4.5:1 AA floor for this 12px text (light theme). Switch to
foreground/60: near-identical light-grey look, but AA on every surface
in both themes (worst case ~5.1:1 on the light muted fill).

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
modelFields() regexes property names out of the generated interface; if
that parse ever returns nothing (type-gen format drift), the coverage
assertion would pass vacuously and stop guarding new fields. Assert a
non-empty parse, matching the sibling guard in vocab-diff-coverage.

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
…ne dead code

The activity page now uses the same responsive primary-detail pattern as Browse:
resizable list/detail panes on desktop (list keeps a usable minimum instead of
crushing to 8rem), and on mobile a full-width list whose detail opens full-screen
with a close button and back-button support. Auto-select of the newest commit is
desktop-only; mobile never auto-navigates into a detail.

A change whose context fails to load now renders an inline error card instead of
leaving a permanently blank row.

HistoryService.ProjectActivity returns a materialized page (Task<ProjectActivity[]>)
since the label resolver already forces materialization and every consumer did too.
The resolver no longer emits an untranslated 'sense' subject fallback; the subject
degrades to null like other unresolved labels.

Also: rename ActivityListViewOptions to ActivityViewPicker (it only picks the view),
delete the storybook-only DiffValue component, fold DiffRichText into DiffMultiString,
add screen-reader added/removed labels to the audio diff, and drop stale references
to the removed Detailed list mode.

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
Claude-Session: https://claude.ai/code/session_01Vm9mEUzcfgX4oUPAbhcfsj
…r context

vocab-diff-coverage now parses DiffVocabPrimitive's own present('…') rows instead of a
hand-maintained handled-set, so dropping a row fails the test just like adding a model
field does (and a stale-row check runs the other direction). change-summary gains
table-driven cases for the payload-picking handlers (Replace/Add publication, semantic
domain replace, translations, component links, vocab patch clears) and a pin on the
entry-tree recognizer accepting mixed create+edit commits.

ChangeTypesCodeGenerator now calls HistoryService.GetChangeTypeKeyFromType instead of
duplicating the TypeName reflection, so the generated ChangeType union can't drift from
the runtime discriminators. Fixed two test files still calling the old streaming
ProjectActivity shape.

New activity-log msgids get translator-context comments per I18N_CONTEXT_GUIDE.

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
Claude-Session: https://claude.ai/code/session_01Vm9mEUzcfgX4oUPAbhcfsj
…erenced by SHA from the PR)"

This reverts commit cc47568.
@coderabbitai

coderabbitai Bot commented Jul 12, 2026

Copy link
Copy Markdown

Important

Review skipped

Auto incremental reviews are disabled on this repository.

Please check the settings in the CodeRabbit UI or the .coderabbit.yaml file in this repository. To trigger a single review, invoke the @coderabbitai review command.

⚙️ Run configuration

Configuration used: Repository UI

Review profile: CHILL

Plan: Pro

Run ID: c12ed5ac-1f8e-4744-afb4-61d8177317bf

You can disable this status message by setting the reviews.review_status to false in the CodeRabbit configuration file.

Use the checkbox below for a quick retry:

  • 🔍 Trigger review
📝 Walkthrough

Walkthrough

Changes

Backend activity enrichment

Layer / File(s) Summary
Materialized activity records and batch metadata
backend/FwLite/LcmCrdt/HistoryService.cs, backend/FwLite/LcmCrdt/ActivityChangeInfoResolver.cs
ProjectActivity now returns enriched arrays with resolved subjects, targets, headwords, and previous snapshots.
Generated activity contracts
backend/FwLite/FwLiteShared/TypeGen/*, frontend/viewer/src/lib/dotnet-types/generated-types/LcmCrdt/*
Generated TypeScript types include change metadata, previous snapshots, and known change-type literals.
Backend validation
backend/FwLite/LcmCrdt.Tests/*
Tests cover activity filtering, materialization, timestamps, snapshot recovery, and change-info naming across entity and relationship changes.

Frontend activity and diff experience

Layer / File(s) Summary
Structured summaries
frontend/viewer/src/lib/activity/change-summary.*, fact-glyph.ts
Backend changes are converted into typed facts, grouped by root entry, categorized, collapsed, and capped for list rows.
Before/after previews
frontend/viewer/src/lib/activity/ActivityItemChangePreview.svelte, frontend/viewer/src/lib/entry-editor/diff-view/*
Activity previews render before/after diffs for entries, senses, examples, vocabulary objects, media, selections, lists, and writing-system values.
Activity navigation and rendering
frontend/viewer/src/lib/activity/ActivityView.svelte, ActivityItem.svelte, ListDetailLayout.svelte, BrowseView.svelte
Activity and browse views use responsive list-detail layouts, grouped rows, lazy tree previews, close controls, commit details, and mobile URL state.
Supporting activity components
frontend/viewer/src/lib/activity/{AuthorLabel,ChangeSummary,EntryHeadwordButton,PreviewViewScope,Collapsed*}.svelte, author-color*, assemble-entry.*
Author coloring, historical entity assembly, collapsed previews, entry actions, and view-scoped rendering are added.

Validation and localization

Layer / File(s) Summary
Coverage tests and stories
frontend/viewer/src/lib/activity/*.test.ts, frontend/viewer/src/lib/entry-editor/diff-view/*.test.ts, frontend/viewer/src/stories/**/*
Tests and stories cover summary handlers, historical assembly, author colors, diff rendering, entity coverage, and representative preview states.
UI and locale support
frontend/viewer/src/lib/components/*, frontend/viewer/src/locales/*.po
Writing-system display components, homograph controls, layout details, and activity/diff localization entries are updated across supported catalogs.

Estimated code review effort: 5 (Critical) | ~120 minutes

Possibly related PRs

Suggested reviewers: rmunn, hahn-kev

Poem

I’m a rabbit diffing change by change,
With carrots sorted, neat and strange.
Before and after hop in view,
New summaries bloom fresh and new.
The history trail is clear—
I twitch my nose and cheer!

🚥 Pre-merge checks | ✅ 4 | ❌ 1

❌ Failed checks (1 warning)

Check name Status Explanation Resolution
Docstring Coverage ⚠️ Warning Docstring coverage is 36.44% which is insufficient. The required threshold is 80.00%. Write docstrings for the functions missing them to satisfy the coverage threshold.
✅ Passed checks (4 passed)
Check name Status Explanation
Title check ✅ Passed The title matches the Activity view redesign and highlights responsive layout, error containment, and review hardening.
Description check ✅ Passed The description is clearly about the Activity view rework and its follow-on review/polish changes.
Linked Issues check ✅ Passed The changes implement the requested before/after activity previews and historical reconstruction instead of comparing against the current version.
Out of Scope Changes check ✅ Passed The rest of the changes are supporting work for the Activity redesign, preview rendering, tests, and generated types; no clear unrelated scope stands out.
✨ Finishing Touches
🧪 Generate unit tests (beta)
  • Create PR with unit tests
  • Commit unit tests in branch claude/activity-redesign-review-vpaqmr

Thanks for using CodeRabbit! It's free for OSS, and your support helps us grow. If you like it, consider giving us a shout-out.

❤️ Share

Comment @coderabbitai help to get the list of available commands.

@github-actions github-actions Bot added the 💻 FW Lite issues related to the fw lite application, not miniLcm or crdt related label Jul 12, 2026
@myieye

myieye commented Jul 12, 2026

Copy link
Copy Markdown
Collaborator Author

Merge interactions with neighboring open PRs (for whoever merges second):

Landmine note: HistoryService.ProjectActivity changed to Task<ProjectActivity[]>; any in-flight branch calling the old IAsyncEnumerable shape (e.g. new tests written against it) gets a compile error with an obvious fix — drop the .ToArrayAsync().


Generated by Claude Code

@argos-ci

argos-ci Bot commented Jul 12, 2026

Copy link
Copy Markdown

The latest updates on your projects. Learn more about Argos notifications ↗︎

Build Status Details Updated (UTC)
default (Inspect) ⚠️ Changes detected (Review) 4 changed Jul 12, 2026, 12:49 PM
e2e (Inspect) ⚠️ Changes detected (Review) 7 changed Jul 12, 2026, 12:57 PM

claude added 2 commits July 12, 2026 10:34
svelte-check (CI workspace mode) rejected the IMultiString built from asString's
string|undefined results; missing alternatives now map to ''.

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
Claude-Session: https://claude.ai/code/session_01Vm9mEUzcfgX4oUPAbhcfsj
Browse and Activity used near-identical ResizablePaneGroup + IsMobile + IfOnce
plumbing for the same behavior: split panes on desktop, full-width list on mobile
with the detail replacing it full-screen while open. Both views now render through
one ListDetailLayout component; callers keep their own selection/open state and
pass the combined detailVisible flag.

Verified: browse-related Playwright UI suite (19 tests incl. back-navigation and
mobile open/close flows) and full viewer unit tests pass; svelte-check clean.

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
Claude-Session: https://claude.ai/code/session_01Vm9mEUzcfgX4oUPAbhcfsj
@myieye myieye marked this pull request as ready for review July 12, 2026 12:20
@myieye

myieye commented Jul 12, 2026

Copy link
Copy Markdown
Collaborator Author

@coderabbitai review


Generated by Claude Code

@coderabbitai

coderabbitai Bot commented Jul 12, 2026

Copy link
Copy Markdown

The PR description image (mobile list) shows the activity feed in the narrow/mobile layout: a full-width list of activity cards with filter dropdowns ("All authors", "All activity types") and a sort control ("Newest first") at the top. Cards show entries like "Deleted word Apfel", grouped changes for "Created word wulu₂" (with nested "Added meaning a flying insect", "Added publication Main Dictionary"), homograph note "wulu₁ Set homograph number to 1", and other field-edit rows, each with an "Unknown" author and relative timestamp.

The PR description image (mobile detail) shows the full-screen detail view opened after tapping a row: a close (X) button, author/timestamp header, "Not synced" badge, a "History" button, Preview/Details tabs, and a red-washed "Deleted word Apfel" panel with fields like Word, Display as, Uses components as, Literal meaning, Note, etc.

Thanks for the context on merge interactions with #2416, #2355, #2412, #2358, and #2388 — noted for when those land alongside this one. Kicking off the review now.

✅ Action performed

Review finished.

Note: CodeRabbit is an incremental review system and does not re-review already reviewed commits. This command is applicable only when automatic reviews are paused.

@coderabbitai coderabbitai Bot left a comment

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Actionable comments posted: 6

🧹 Nitpick comments (5)
frontend/viewer/src/lib/activity/assemble-entry.test.ts (1)

17-28: 📐 Maintainability & Code Quality | 🔵 Trivial | ⚡ Quick win

Consider adding a test for the "latest wins" deduplication behavior.

The latestById helper takes the latest snapshot when an entity id appears multiple times in the commit, but no test exercises this path. A duplicate-sense test would guard against regressions in the deduplication logic.

🧪 Suggested test
   it('ignores senses that belong to a different entry', () => {
     const contexts = [ctx('Entry', entrySnap), ctx('Sense', {id: 's1', entryId: 'other'})];
     expect(assembleEntryAtCommit(entryId, contexts, [])?.senses).toEqual([]);
   });
+
+  it('uses the latest snapshot when a sense appears multiple times in the commit', () => {
+    const contexts = [
+      ctx('Entry', entrySnap),
+      ctx('Sense', {id: 's1', entryId, gloss: {en: 'old gloss'}}),
+      ctx('Sense', {id: 's1', entryId, gloss: {en: 'new gloss'}}),
+    ];
+    const entry = assembleEntryAtCommit(entryId, contexts, []);
+    expect(entry?.senses).toHaveLength(1);
+    expect(entry?.senses[0].gloss).toEqual({en: 'new gloss'});
+  });
 });
🤖 Prompt for AI Agents
Verify each finding against current code. Fix only still-valid issues, skip the
rest with a brief reason, keep changes minimal, and validate.

In `@frontend/viewer/src/lib/activity/assemble-entry.test.ts` around lines 17 -
28, The test covering assembleEntryAtCommit should also exercise latestById
deduplication by including duplicate Sense contexts with the same id and
different snapshots. Assert that the assembled entry contains one instance of
that sense using the latest snapshot’s values, while preserving the existing
commit-order and example-sentence assertions.
frontend/viewer/src/lib/entry-editor/diff-view/vocab-diff-coverage.test.ts (1)

13-26: 📐 Maintainability & Code Quality | 🔵 Trivial | 💤 Low value

Prefer resolving generated paths relative to the test file, not process.cwd().

The sibling coverage test (entity-config-coverage.test.ts) resolves the same generated directory via fileURLToPath(import.meta.url), which is independent of the working directory. Using process.cwd() here couples the test to being run from frontend/viewer; aligning both tests removes that hidden assumption.

♻️ Suggested alignment
-import {describe, it, expect} from 'vitest';
-import {readFileSync} from 'node:fs';
-import {resolve} from 'node:path';
+import {describe, it, expect} from 'vitest';
+import {readFileSync} from 'node:fs';
+import {fileURLToPath} from 'node:url';
+import {dirname, join} from 'node:path';
 import {IGNORED_VOCAB_FIELDS} from './vocab-diff-fields';
+
+const here = dirname(fileURLToPath(import.meta.url));

Then derive the model/component paths from here instead of process.cwd().

🤖 Prompt for AI Agents
Verify each finding against current code. Fix only still-valid issues, skip the
rest with a brief reason, keep changes minimal, and validate.

In `@frontend/viewer/src/lib/entry-editor/diff-view/vocab-diff-coverage.test.ts`
around lines 13 - 26, Update propertyNames and handledFields to resolve paths
from the test file location using the existing
fileURLToPath(import.meta.url)-based here pattern from
entity-config-coverage.test.ts, rather than process.cwd(). Derive both generated
model and DiffVocabPrimitive.svelte paths relative to here while preserving the
current file parsing behavior.
frontend/viewer/src/lib/activity/change-summary.ts (1)

98-104: 🎯 Functional Correctness | 🔵 Trivial | 💤 Low value

?? fallback conflates a camelCase null with an absent value.

prop returns record[camel] ?? record[pascal], so a legitimately-null camelCase property falls through to the (usually undefined) PascalCase variant. Today this is harmless — the only null-sensitive caller (SetPartOfSpeechChange) treats null and undefined identically — but any future handler that needs to distinguish "explicitly cleared to null" from "absent" would silently break. If you want to future-proof, prefer key presence over ??.

♻️ Presence-based lookup
-  const camel = key[0].toLowerCase() + key.slice(1);
-  const pascal = key[0].toUpperCase() + key.slice(1);
-  return record[camel] ?? record[pascal];
+  const camel = key[0].toLowerCase() + key.slice(1);
+  const pascal = key[0].toUpperCase() + key.slice(1);
+  return camel in record ? record[camel] : record[pascal];
🤖 Prompt for AI Agents
Verify each finding against current code. Fix only still-valid issues, skip the
rest with a brief reason, keep changes minimal, and validate.

In `@frontend/viewer/src/lib/activity/change-summary.ts` around lines 98 - 104,
Update the prop function’s camelCase/PascalCase lookup to use property presence
rather than nullish coalescing, so an explicitly null camelCase value is
returned as null while the PascalCase variant is used only when the camelCase
key is absent.
frontend/viewer/src/lib/activity/ChangeSummary.svelte (1)

220-222: 📐 Maintainability & Code Quality | 🔵 Trivial | ⚡ Quick win

Split the dense editObjectField one-liner for readability.

Line 222 nests object-type label, subject token, cleared/ws/value branches, and two more nested conditionals all on a single line. Since whitespace at {#if}/{:else}/snippet boundaries is trimmed (per this file's own documented spacing contract), reformatting across multiple lines is behavior-preserving and would make this branch much easier to scan/debug.

♻️ Suggested reformat (behavior-preserving)
-{:else if fact.kind === 'editObjectField'}
-  {`@const` objectType = capitalize(objectNoun(fact.object))}
-  {objectType}{`#if` subject}{`@render` subjectToken(subject, true)}{/if}{`#if` fact.cleared}{$t`Cleared ${fact.field}`}{`#if` fact.ws}{`@render` wsCode(fact.ws)}{/if}{:else if fact.value !== undefined}{`@const` value = fact.value}{`#if` fact.ws}<T msg="Set # to #" cmt="First # is a field label plus writing-system code, second # is the new value">{fact.field}{`@render` wsCode(fact.ws)}{`#snippet` second()}{`@render` chip(value, true)}{/snippet}</T>{:else}{$t`Set ${fact.field} to`}{`@render` chip(value)}{/if}{:else}{$t`Changed ${fact.field}`}{/if}
+{:else if fact.kind === 'editObjectField'}
+  {`@const` objectType = capitalize(objectNoun(fact.object))}
+  {objectType}
+  {`#if` subject}{`@render` subjectToken(subject, true)}{/if}
+  {`#if` fact.cleared}
+    {$t`Cleared ${fact.field}`}{`#if` fact.ws}{`@render` wsCode(fact.ws)}{/if}
+  {:else if fact.value !== undefined}
+    {`@const` value = fact.value}
+    {`#if` fact.ws}
+      <T msg="Set # to #" cmt="First # is a field label plus writing-system code, second # is the new value">{fact.field}{`@render` wsCode(fact.ws)}{`#snippet` second()}{`@render` chip(value, true)}{/snippet}</T>
+    {:else}
+      {$t`Set ${fact.field} to`}{`@render` chip(value)}
+    {/if}
+  {:else}
+    {$t`Changed ${fact.field}`}
+  {/if}
🤖 Prompt for AI Agents
Verify each finding against current code. Fix only still-valid issues, skip the
rest with a brief reason, keep changes minimal, and validate.

In `@frontend/viewer/src/lib/activity/ChangeSummary.svelte` around lines 220 -
222, Reformat the `editObjectField` branch in `ChangeSummary.svelte` into
readable multiline markup, separating the `objectType`/`subjectToken` output
from the `cleared`, `value`, writing-system, and fallback conditionals. Preserve
the existing rendering order, conditions, translations, snippets, and whitespace
behavior; make no functional changes.
backend/FwLite/LcmCrdt/HistoryService.cs (1)

336-348: 🚀 Performance & Scalability | 🔵 Trivial | ⚡ Quick win

LoadPreviousSnapshot materializes the entity's full commit history to find one adjacent commit.

affectingCommitIds loads every commit ID that ever touched the entity, then does an in-memory IndexOf to locate the adjacent one. For heavily-edited entries this is an unbounded list load on every "view change details" call, where a targeted query (e.g., filter by ordering key relative to commitId, OrderByDescending().Take(1)) would return the same result with a bounded query.

🤖 Prompt for AI Agents
Verify each finding against current code. Fix only still-valid issues, skip the
rest with a brief reason, keep changes minimal, and validate.

In `@backend/FwLite/LcmCrdt/HistoryService.cs` around lines 336 - 348, Update
LoadPreviousSnapshot to query only the single most recent commit affecting
entityId that precedes commitId, using the existing commit ordering and a
descending filter with Take(1). Remove the full affectingCommitIds
materialization and in-memory IndexOf logic, preserve the null result when no
earlier affecting commit exists, and pass the selected commit ID to
dataModel.GetAtCommit.
🤖 Prompt for all review comments with AI agents
Verify each finding against current code. Fix only still-valid issues, skip the
rest with a brief reason, keep changes minimal, and validate.

Inline comments:
In `@backend/FwLite/LcmCrdt/ActivityChangeInfoResolver.cs`:
- Around line 254-269: Update RecoverDeleted to select only the latest snapshot
per missing EntityId within the database query, rather than materializing all
snapshots and grouping with group.Last() in memory. Apply the same query-level
latest-row filtering in LoadComponentEndpointsFromCreate for
ChangeEntity<IChange>, before narrowing results to AddEntryComponentChange, and
remove the redundant in-memory grouping.

In `@backend/FwLite/LcmCrdt/HistoryService.cs`:
- Around line 57-59: Make ProjectActivity immutable by changing ChangeInfo from
a mutable setter to an init-only property, then update
ActivityChangeInfoResolver.ResolveAsync to return new ProjectActivity instances
using with expressions populated with the resolved ChangeInfo instead of
mutating existing activities or their arrays. Update callers to use the returned
activities while preserving the existing ordering and enrichment behavior.
- Around line 324-334: Update the previous-snapshot lookup in the change-context
construction to use the selected change’s identity, including its changeIndex,
rather than only commitId and entityId. Adjust LoadPreviousSnapshot and its
caller as needed so later same-entity changes in an AddChanges commit compare
against the state immediately before that specific change; keep snapshot
resolution and affected-entry handling unchanged.

In `@frontend/viewer/src/lib/history/HistoryView.svelte`:
- Line 106: Update the ActivityItem invocation in HistoryView to pass
record.changeInfo for the changeInfo field instead of an empty array, while
preserving the existing record change and changeTypes values.

In `@frontend/viewer/src/locales/en.po`:
- Around line 222-224: Rerun the locale catalog extraction to regenerate
frontend/viewer/src/locales/en.po, ensuring the {0} activity-log translator note
attaches to the intended activity-log string rather than “Add your first entry
to start building your dictionary.” and the Code field-label note attaches to
“Code” rather than “Closed.”

In `@frontend/viewer/src/locales/es.po`:
- Around line 227-230: Move the extractor comments from the generated es.po
entry to their corresponding source strings in DashboardView.svelte: place the
fallback activity-log comment on the matching list-field fallback string and the
translation-context comment on “Total entries.” Remove the misleading comments
from the empty-state prompt and Total entries entries in the generated PO
output.

---

Nitpick comments:
In `@backend/FwLite/LcmCrdt/HistoryService.cs`:
- Around line 336-348: Update LoadPreviousSnapshot to query only the single most
recent commit affecting entityId that precedes commitId, using the existing
commit ordering and a descending filter with Take(1). Remove the full
affectingCommitIds materialization and in-memory IndexOf logic, preserve the
null result when no earlier affecting commit exists, and pass the selected
commit ID to dataModel.GetAtCommit.

In `@frontend/viewer/src/lib/activity/assemble-entry.test.ts`:
- Around line 17-28: The test covering assembleEntryAtCommit should also
exercise latestById deduplication by including duplicate Sense contexts with the
same id and different snapshots. Assert that the assembled entry contains one
instance of that sense using the latest snapshot’s values, while preserving the
existing commit-order and example-sentence assertions.

In `@frontend/viewer/src/lib/activity/change-summary.ts`:
- Around line 98-104: Update the prop function’s camelCase/PascalCase lookup to
use property presence rather than nullish coalescing, so an explicitly null
camelCase value is returned as null while the PascalCase variant is used only
when the camelCase key is absent.

In `@frontend/viewer/src/lib/activity/ChangeSummary.svelte`:
- Around line 220-222: Reformat the `editObjectField` branch in
`ChangeSummary.svelte` into readable multiline markup, separating the
`objectType`/`subjectToken` output from the `cleared`, `value`, writing-system,
and fallback conditionals. Preserve the existing rendering order, conditions,
translations, snippets, and whitespace behavior; make no functional changes.

In `@frontend/viewer/src/lib/entry-editor/diff-view/vocab-diff-coverage.test.ts`:
- Around line 13-26: Update propertyNames and handledFields to resolve paths
from the test file location using the existing
fileURLToPath(import.meta.url)-based here pattern from
entity-config-coverage.test.ts, rather than process.cwd(). Derive both generated
model and DiffVocabPrimitive.svelte paths relative to here while preserving the
current file parsing behavior.
🪄 Autofix (Beta)

Fix all unresolved CodeRabbit comments on this PR:

  • Push a commit to this branch (recommended)
  • Create a new PR with the fixes

ℹ️ Review info
⚙️ Run configuration

Configuration used: Repository UI

Review profile: CHILL

Plan: Pro

Run ID: 78fc9bdc-1307-4fe4-80c9-7ff6cd7629c5

📥 Commits

Reviewing files that changed from the base of the PR and between b5e8ecb and f1325d8.

⛔ Files ignored due to path filters (1)
  • frontend/pnpm-lock.yaml is excluded by !**/pnpm-lock.yaml
📒 Files selected for processing (75)
  • backend/FwLite/FwLiteShared/Services/HistoryServiceJsInvokable.cs
  • backend/FwLite/FwLiteShared/TypeGen/ChangeTypesCodeGenerator.cs
  • backend/FwLite/FwLiteShared/TypeGen/ChangeTypesMarker.cs
  • backend/FwLite/FwLiteShared/TypeGen/ReinforcedFwLiteTypingConfig.cs
  • backend/FwLite/LcmCrdt.Tests/DateTimeOffsetOrmParityTests.cs
  • backend/FwLite/LcmCrdt.Tests/HistoryServiceActivityTests.cs
  • backend/FwLite/LcmCrdt.Tests/OpenProjectTests.cs
  • backend/FwLite/LcmCrdt/ActivityChangeInfoResolver.cs
  • backend/FwLite/LcmCrdt/HistoryService.cs
  • frontend/viewer/package.json
  • frontend/viewer/src/lib/activity/ActivityFilter.svelte
  • frontend/viewer/src/lib/activity/ActivityItem.svelte
  • frontend/viewer/src/lib/activity/ActivityItemChangePreview.svelte
  • frontend/viewer/src/lib/activity/ActivityView.svelte
  • frontend/viewer/src/lib/activity/ActivityViewPicker.svelte
  • frontend/viewer/src/lib/activity/AuthorLabel.svelte
  • frontend/viewer/src/lib/activity/ChangeSummary.svelte
  • frontend/viewer/src/lib/activity/CollapsedEntryDiff.svelte
  • frontend/viewer/src/lib/activity/CollapsedSenseDiff.svelte
  • frontend/viewer/src/lib/activity/EntryHeadwordButton.svelte
  • frontend/viewer/src/lib/activity/PreviewViewScope.svelte
  • frontend/viewer/src/lib/activity/assemble-entry.test.ts
  • frontend/viewer/src/lib/activity/assemble-entry.ts
  • frontend/viewer/src/lib/activity/author-color-service.svelte.ts
  • frontend/viewer/src/lib/activity/author-color.test.ts
  • frontend/viewer/src/lib/activity/author-color.ts
  • frontend/viewer/src/lib/activity/change-summary.test.ts
  • frontend/viewer/src/lib/activity/change-summary.ts
  • frontend/viewer/src/lib/activity/fact-glyph.ts
  • frontend/viewer/src/lib/activity/preview-entity-coverage.test.ts
  • frontend/viewer/src/lib/components/ListItem.svelte
  • frontend/viewer/src/lib/components/dictionary/DictionaryEntry.svelte
  • frontend/viewer/src/lib/components/dictionary/Headwords.svelte
  • frontend/viewer/src/lib/components/field-editors/multi-ws-input.svelte
  • frontend/viewer/src/lib/components/field-editors/rich-multi-ws-input.svelte
  • frontend/viewer/src/lib/components/writing-system/WsCode.svelte
  • frontend/viewer/src/lib/dotnet-types/generated-types/LcmCrdt/ChangeTypes.ts
  • frontend/viewer/src/lib/dotnet-types/generated-types/LcmCrdt/IActivityChangeInfo.ts
  • frontend/viewer/src/lib/dotnet-types/generated-types/LcmCrdt/IChangeContext.ts
  • frontend/viewer/src/lib/dotnet-types/generated-types/LcmCrdt/IProjectActivity.ts
  • frontend/viewer/src/lib/dotnet-types/generated-types/LcmCrdt/index.ts
  • frontend/viewer/src/lib/entry-editor/diff-view/DiffAudio.svelte
  • frontend/viewer/src/lib/entry-editor/diff-view/DiffEntryLinkList.svelte
  • frontend/viewer/src/lib/entry-editor/diff-view/DiffEntryPrimitive.svelte
  • frontend/viewer/src/lib/entry-editor/diff-view/DiffExamplePrimitive.svelte
  • frontend/viewer/src/lib/entry-editor/diff-view/DiffMultiSelect.svelte
  • frontend/viewer/src/lib/entry-editor/diff-view/DiffMultiString.svelte
  • frontend/viewer/src/lib/entry-editor/diff-view/DiffRichText.svelte
  • frontend/viewer/src/lib/entry-editor/diff-view/DiffSelect.svelte
  • frontend/viewer/src/lib/entry-editor/diff-view/DiffSensePrimitive.svelte
  • frontend/viewer/src/lib/entry-editor/diff-view/DiffShell.svelte
  • frontend/viewer/src/lib/entry-editor/diff-view/DiffText.svelte
  • frontend/viewer/src/lib/entry-editor/diff-view/DiffVocabPrimitive.svelte
  • frontend/viewer/src/lib/entry-editor/diff-view/diff-classes.ts
  • frontend/viewer/src/lib/entry-editor/diff-view/diff-field-coverage.test.ts
  • frontend/viewer/src/lib/entry-editor/diff-view/inline-diff.test.ts
  • frontend/viewer/src/lib/entry-editor/diff-view/inline-diff.ts
  • frontend/viewer/src/lib/entry-editor/diff-view/vocab-diff-coverage.test.ts
  • frontend/viewer/src/lib/entry-editor/diff-view/vocab-diff-fields.ts
  • frontend/viewer/src/lib/history/HistoryView.svelte
  • frontend/viewer/src/lib/layout/ListDetailLayout.svelte
  • frontend/viewer/src/lib/utils/search-params.ts
  • frontend/viewer/src/lib/views/entity-config-coverage.test.ts
  • frontend/viewer/src/locales/en.po
  • frontend/viewer/src/locales/es.po
  • frontend/viewer/src/locales/fr.po
  • frontend/viewer/src/locales/id.po
  • frontend/viewer/src/locales/ko.po
  • frontend/viewer/src/locales/ms.po
  • frontend/viewer/src/locales/sw.po
  • frontend/viewer/src/locales/vi.po
  • frontend/viewer/src/project/browse/BrowseView.svelte
  • frontend/viewer/src/stories/activity/previews.stories.svelte
  • frontend/viewer/src/stories/activity/summaries.stories.svelte
  • frontend/viewer/src/stories/editor/diff/diff-overview.stories.svelte

Comment on lines +254 to +269
private static async Task RecoverDeleted<T>(ICrdtDbContext db, HashSet<Guid> ids, Dictionary<Guid, T> loaded)
where T : class, IObjectWithId
{
var missing = ids.Where(id => !loaded.ContainsKey(id)).ToHashSet();
if (missing.Count == 0) return;
var snapshots = await (
from commit in db.Commits.DefaultOrder()
from snapshot in db.Snapshots.InnerJoin(s => s.CommitId == commit.Id)
where missing.Contains(snapshot.EntityId)
select snapshot
).ToListAsyncLinqToDB();
foreach (var group in snapshots.GroupBy(s => s.EntityId))
{
if (group.Last().Entity.DbObject is T entity) loaded[group.Key] = entity;
}
}

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

🚀 Performance & Scalability | 🟠 Major | ⚡ Quick win

🧩 Analysis chain

🏁 Script executed:

#!/bin/bash
# Look for any existing "latest snapshot per entity" helper in SIL.Harmony usage across the backend,
# which could be reused here instead of loading full history.
rg -n -C3 --type=cs 'Snapshots\.' backend/FwLite | rg -v 'ActivityChangeInfoResolver'
rg -n -C3 --type=cs 'DefaultOrder\(' backend/FwLite

Repository: sillsdev/languageforge-lexbox

Length of output: 6329


🏁 Script executed:

#!/bin/bash
set -euo pipefail

# Inspect the resolver around the two relevant methods.
FILE=backend/FwLite/LcmCrdt/ActivityChangeInfoResolver.cs
wc -l "$FILE"
sed -n '240,350p' "$FILE"

# Inspect the related history query for any reusable patterns.
FILE=backend/FwLite/LcmCrdt/HistoryService.cs
sed -n '273,320p' "$FILE"

Repository: sillsdev/languageforge-lexbox

Length of output: 8157


RecoverDeleted and LoadComponentEndpointsFromCreate should filter earlier

  • RecoverDeleted loads every snapshot for each missing id and then does GroupBy(...).Last() in memory, even though only the latest snapshot is needed.
  • LoadComponentEndpointsFromCreate does the same for ChangeEntity<IChange> before narrowing to AddEntryComponentChange.
  • Push the “latest/create row only” selection into the query to avoid avoidable I/O and memory pressure as history grows.
🤖 Prompt for AI Agents
Verify each finding against current code. Fix only still-valid issues, skip the
rest with a brief reason, keep changes minimal, and validate.

In `@backend/FwLite/LcmCrdt/ActivityChangeInfoResolver.cs` around lines 254 - 269,
Update RecoverDeleted to select only the latest snapshot per missing EntityId
within the database query, rather than materializing all snapshots and grouping
with group.Last() in memory. Apply the same query-level latest-row filtering in
LoadComponentEndpointsFromCreate for ChangeEntity<IChange>, before narrowing
results to AddEntryComponentChange, and remove the redundant in-memory grouping.

Source: Coding guidelines

Comment on lines +57 to 59
/// <summary>Resolved display info per change, parallel to <see cref="Changes"/> by index. Set during enrichment.</summary>
public IReadOnlyList<ActivityChangeInfo> ChangeInfo { get; set; } = [];
}

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

📐 Maintainability & Code Quality | 🟠 Major | ⚡ Quick win

Mutable setter on ProjectActivity breaks record immutability.

ChangeInfo uses { get; set; } and is mutated post-construction by the resolver, which conflicts with the repo guideline to prefer immutable records for DTOs. Consider having ActivityChangeInfoResolver.ResolveAsync return the resolved list (or use with expressions) instead of mutating the array elements in place.

As per coding guidelines: "Prefer records for DTOs and immutable data structures".

♻️ Suggested direction
-    /// <summary>Resolved display info per change, parallel to <see cref="Changes"/> by index. Set during enrichment.</summary>
-    public IReadOnlyList<ActivityChangeInfo> ChangeInfo { get; set; } = [];
+    /// <summary>Resolved display info per change, parallel to <see cref="Changes"/> by index. Set during enrichment.</summary>
+    public IReadOnlyList<ActivityChangeInfo> ChangeInfo { get; init; } = [];

This would require ActivityChangeInfoResolver.ResolveAsync to return new ProjectActivity instances (e.g. via activity with { ChangeInfo = ... }) rather than mutating the passed-in array in place.

🤖 Prompt for AI Agents
Verify each finding against current code. Fix only still-valid issues, skip the
rest with a brief reason, keep changes minimal, and validate.

In `@backend/FwLite/LcmCrdt/HistoryService.cs` around lines 57 - 59, Make
ProjectActivity immutable by changing ChangeInfo from a mutable setter to an
init-only property, then update ActivityChangeInfoResolver.ResolveAsync to
return new ProjectActivity instances using with expressions populated with the
resolved ChangeInfo instead of mutating existing activities or their arrays.
Update callers to use the returned activities while preserving the existing
ordering and enrichment behavior.

Source: Coding guidelines

Comment on lines +324 to +334
var previousSnapshot = await LoadPreviousSnapshot(crdtDbContext, commitId, change.EntityId);

await ResolveSensePartOfSpeech(snapshot);
await ResolveSensePartOfSpeech(previousSnapshot);

var affectedEntries = await GetAffectedEntryIds(change)
.Select(async (Guid entryId, CancellationToken _) => await GetCurrentOrLatestEntry(entryId))
.ToArrayAsync();

return new ChangeContext(change, snapshot, previousSnapshot, affectedEntries);
}

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

🎯 Functional Correctness | 🟠 Major | 🏗️ Heavy lift

🧩 Analysis chain

🏁 Script executed:

#!/bin/bash
# Check whether commits can bundle multiple ChangeEntities against the same entity,
# and whether existing tests cover per-changeIndex before/after within a multi-change commit.
rg -n 'ChangeEntities' backend/FwLite/LcmCrdt -g '*.cs' -B2 -A8
fd -HI 'HistoryServiceActivityTests.cs' backend/FwLite/LcmCrdt.Tests -x cat {}

Repository: sillsdev/languageforge-lexbox

Length of output: 50386


🏁 Script executed:

#!/bin/bash
set -euo pipefail

# Inspect the relevant methods and surrounding history logic.
sed -n '300,380p' backend/FwLite/LcmCrdt/HistoryService.cs

# Look for any per-changeIndex snapshot handling or same-entity multi-change handling.
rg -n 'changeIndex|LoadPreviousSnapshot|GetAtCommit<|ChangeEntities.*Index|Index == changeIndex|previousSnapshot' backend/FwLite/LcmCrdt -g '*.cs' -A3 -B3

# Inspect the commit/change entity model to see whether multiple changes per entity in one commit are represented anywhere.
rg -n 'class ChangeEntity|record ChangeEntity|EntityId|Index' backend/FwLite/LcmCrdt -g '*.cs' -A4 -B4

Repository: sillsdev/languageforge-lexbox

Length of output: 50386


🏁 Script executed:

#!/bin/bash
set -euo pipefail

echo '--- HistoryService.cs (relevant section) ---'
sed -n '300,370p' backend/FwLite/LcmCrdt/HistoryService.cs

echo
echo '--- LoadPreviousSnapshot definition ---'
rg -n 'LoadPreviousSnapshot\(' backend/FwLite/LcmCrdt/HistoryService.cs -A30 -B5

echo
echo '--- Activity/history tests mentioning changeIndex, previousSnapshot, or multiple changes ---'
rg -n 'changeIndex|previousSnapshot|LoadPreviousSnapshot|GetChangeContext|Activity' backend/FwLite/LcmCrdt.Tests -g '*Tests.cs' -A4 -B4 --max-count 80

Repository: sillsdev/languageforge-lexbox

Length of output: 50385


🏁 Script executed:

#!/bin/bash
set -euo pipefail

echo '--- Search for multi-change commit creation helpers and overloads ---'
rg -n 'AddChange\(|AddChanges\(|ChangesNameHelper|CreateCommit|CommitMetadata' backend/FwLite/LcmCrdt -g '*.cs' -A4 -B4 --max-count 120

echo
echo '--- Inspect HistoryService change-context callers/usages ---'
rg -n 'LoadChangeContext\(|ChangeContext\(' backend/FwLite/LcmCrdt -g '*.cs' -A4 -B4 --max-count 60

echo
echo '--- Inspect HistoryServiceActivityTests for any commit with multiple changes in one commit ---'
rg -n 'AddChange\(ClientId, .*Meta\(\)\)|AddChange\(ClientId, .*CommitMetadata|await DataModel.AddChange' backend/FwLite/LcmCrdt.Tests/HistoryServiceActivityTests.cs -A3 -B3 --max-count 120

Repository: sillsdev/languageforge-lexbox

Length of output: 50385


Compute previousSnapshot from the selected change, not just the commit
LoadPreviousSnapshot(commitId, entityId) returns the state before the last commit that touched the entity. For commits built with AddChanges(...), a later changeIndex on the same entity will compare against the pre-commit state instead of the state before that specific change, so the Activity diff can attribute earlier same-commit edits to the wrong change.

🤖 Prompt for AI Agents
Verify each finding against current code. Fix only still-valid issues, skip the
rest with a brief reason, keep changes minimal, and validate.

In `@backend/FwLite/LcmCrdt/HistoryService.cs` around lines 324 - 334, Update the
previous-snapshot lookup in the change-context construction to use the selected
change’s identity, including its changeIndex, rather than only commitId and
entityId. Adjust LoadPreviousSnapshot and its caller as needed so later
same-entity changes in an AddChanges commit compare against the state
immediately before that specific change; keep snapshot resolution and
affected-entry handling unchanged.

<div class="w-full">
{#if record}
<ActivityItem activity={{...record, changes: [record.change], changeTypes: []}}/>
<ActivityItem activity={{...record, changes: [record.change], changeTypes: [], changeInfo: []}}/>

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

🗄️ Data Integrity & Integration | 🟠 Major | ⚡ Quick win

🧩 Analysis chain

🏁 Script executed:

#!/bin/bash
# Inspect how ActivityItem.svelte consumes activity.changes vs activity.changeInfo
fd -a 'ActivityItem.svelte' | xargs -I{} sh -c 'echo "== {} =="; cat -n "{}"'

Repository: sillsdev/languageforge-lexbox

Length of output: 21074


Pass the record’s changeInfo through here
ActivityItem looks up changeInfo by change.change.index, so hardcoding [] drops the subject/root metadata for every rendered change. Pass the existing record.changeInfo instead.

🤖 Prompt for AI Agents
Verify each finding against current code. Fix only still-valid issues, skip the
rest with a brief reason, keep changes minimal, and validate.

In `@frontend/viewer/src/lib/history/HistoryView.svelte` at line 106, Update the
ActivityItem invocation in HistoryView to pass record.changeInfo for the
changeInfo field instead of an empty array, while preserving the existing record
change and changeTypes values.

Comment thread frontend/viewer/src/locales/en.po Outdated
Comment on lines 222 to 224
#. Activity-log line (fallback for list fields without a singular noun). {0} = plural field label (e.g. a field label from entity config). A chip with the added item follows.
#: src/project/dashboard/DashboardView.svelte
msgid "Add your first entry to start building your dictionary."

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

📐 Maintainability & Code Quality | 🟡 Minor | ⚡ Quick win

🧩 Analysis chain

🏁 Script executed:

#!/bin/bash
# Flag PO entries whose #. comment references {0}/{1} but the msgid has no placeholder,
# which indicates a comment attached to the wrong msgid.
fd -e po . frontend/viewer/src/locales --exec python3 - {} <<'PY'
import sys, re
path = sys.argv[1]
block = []
def check(block, path):
    comments = [l for l in block if l.startswith('#.')]
    msgid = next((l for l in block if l.startswith('msgid ')), '')
    ctext = ' '.join(comments)
    if re.search(r'\{[01]\}', ctext) and not re.search(r'\{[01]\}|#', msgid):
        print(f"{path}: comment mentions placeholder but msgid has none -> {msgid.strip()}")
with open(path, encoding='utf-8') as f:
    for line in f:
        if line.strip() == '':
            check(block, path); block = []
        else:
            block.append(line)
    check(block, path)
PY

Repository: sillsdev/languageforge-lexbox

Length of output: 167


🏁 Script executed:

#!/bin/bash
set -euo pipefail

file='frontend/viewer/src/locales/en.po'

python3 - <<'PY'
from pathlib import Path
import re

path = Path('frontend/viewer/src/locales/en.po')
lines = path.read_text(encoding='utf-8').splitlines()

targets = [33, 222, 535]
for t in targets:
    start = max(1, t - 6)
    end = min(len(lines), t + 10)
    print(f"\n=== lines {start}-{end} around {t} ===")
    for i in range(start, end + 1):
        print(f"{i:4}: {lines[i-1]}")
PY

Repository: sillsdev/languageforge-lexbox

Length of output: 2757


🏁 Script executed:

python3 - <<'PY'
from pathlib import Path

path = Path('frontend/viewer/src/locales/en.po')
lines = path.read_text(encoding='utf-8').splitlines()

start, end = 545, 556
for i in range(start, end + 1):
    print(f"{i:4}: {lines[i-1]}")
PY

Repository: sillsdev/languageforge-lexbox

Length of output: 623


🏁 Script executed:

python3 - <<'PY'
from pathlib import Path
import re

path = Path('frontend/viewer/src/locales/en.po')
lines = path.read_text(encoding='utf-8').splitlines()

for needle in ['msgid "Code"', 'msgid "Closed"', 'msgid "(unknown)"', 'msgid "Add your first entry to start building your dictionary."']:
    print(f"\n=== {needle} ===")
    for i, line in enumerate(lines, 1):
        if line == needle:
            start = max(1, i-3)
            end = min(len(lines), i+3)
            for j in range(start, end+1):
                print(f"{j:4}: {lines[j-1]}")
            print()
PY

Repository: sillsdev/languageforge-lexbox

Length of output: 1869


Realign the misplaced translator comments

frontend/viewer/src/locales/en.po:222-224, 535-537 has two stale #. comments attached to the wrong msgid:

  • the {0} activity-log context sits above Add your first entry to start building your dictionary.
  • the Code field-label context sits above Closed

Rerun the catalog extraction so the translator notes line up with the intended strings.

🤖 Prompt for AI Agents
Verify each finding against current code. Fix only still-valid issues, skip the
rest with a brief reason, keep changes minimal, and validate.

In `@frontend/viewer/src/locales/en.po` around lines 222 - 224, Rerun the locale
catalog extraction to regenerate frontend/viewer/src/locales/en.po, ensuring the
{0} activity-log translator note attaches to the intended activity-log string
rather than “Add your first entry to start building your dictionary.” and the
Code field-label note attaches to “Code” rather than “Closed.”

Comment thread frontend/viewer/src/locales/es.po Outdated
Comment on lines 227 to 230
#. Activity-log line (fallback for list fields without a singular noun). {0} = plural field label (e.g. a field label from entity config). A chip with the added item follows.
#: src/project/dashboard/DashboardView.svelte
msgid "Add your first entry to start building your dictionary."
msgstr ""

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

📐 Maintainability & Code Quality | 🟡 Minor | ⚡ Quick win

🧩 Analysis chain

🏁 Script executed:

#!/bin/bash
# Locate the source annotations to confirm the misattributed extractor comments.
rg -nP -C3 'Add your first entry to start building your dictionary' -g '*.svelte'
rg -nP -C3 'fallback for list fields without a singular noun' -g '*.svelte' -g '*.ts'
rg -nP -C3 'Total entries' -g '*.svelte'

Repository: sillsdev/languageforge-lexbox

Length of output: 167


🏁 Script executed:

#!/bin/bash
set -euo pipefail

echo '--- es.po context around the flagged entry ---'
python3 - <<'PY'
from pathlib import Path
p = Path('frontend/viewer/src/locales/es.po')
lines = p.read_text(encoding='utf-8').splitlines()
for start in [220, 2668]:
    print(f'\n### {p}:{start}-{start+20}')
    for i in range(start-1, min(len(lines), start+20)):
        print(f'{i+1}:{lines[i]}')
PY

echo
echo '--- search for the exact msgids and nearby source comments ---'
rg -n -C 2 -F 'Add your first entry to start building your dictionary.' .
rg -n -C 2 -F 'Total entries' .
rg -n -C 2 -F 'fallback for list fields without a singular noun' .
rg -n -C 2 -F 'A chip with the added item follows.' .
rg -n -C 2 -F 'translation' frontend/viewer/src frontend .

Repository: sillsdev/languageforge-lexbox

Length of output: 50387


🏁 Script executed:

#!/bin/bash
set -euo pipefail

echo '--- inventory of locale-related source files ---'
git ls-files 'frontend/viewer/src/**/*' | rg 'locale|locales|svelte|ts|js|po|json'

echo
echo '--- candidate extractor/source annotation search across frontend/viewer/src ---'
rg -n -C 2 -F '{0} = plural field label' frontend/viewer/src || true
rg -n -C 2 -F 'plural field label' frontend/viewer/src || true
rg -n -C 2 -F 'A chip with the added item follows.' frontend/viewer/src || true
rg -n -C 2 -F 'Add your first entry to start building your dictionary.' frontend/viewer/src || true
rg -n -C 2 -F 'Total entries' frontend/viewer/src || true

Repository: sillsdev/languageforge-lexbox

Length of output: 50385


🏁 Script executed:

#!/bin/bash
set -euo pipefail

echo '--- inspect neighboring entries in frontend/viewer/src/locales/es.po ---'
python3 - <<'PY'
from pathlib import Path
p = Path('frontend/viewer/src/locales/es.po')
lines = p.read_text(encoding='utf-8').splitlines()
for start in [220, 2668]:
    print(f'\n### {p}:{start}-{start+18}')
    for i in range(start-1, min(len(lines), start+18)):
        print(f'{i+1}:{lines[i]}')
PY

Repository: sillsdev/languageforge-lexbox

Length of output: 1943


🏁 Script executed:

#!/bin/bash
set -euo pipefail

echo '--- DashboardView.svelte context around the dashboard prompt and totals ---'
ast-grep outline frontend/viewer/src/project/dashboard/DashboardView.svelte --view expanded || true
echo
rg -n -C 4 -F 'Add your first entry to start building your dictionary.' frontend/viewer/src/project/dashboard/DashboardView.svelte
echo
rg -n -C 4 -F 'Total entries' frontend/viewer/src/project/dashboard/DashboardView.svelte
echo
rg -n -C 4 -F 'A chip with the added item follows.' frontend/viewer/src/project/dashboard/DashboardView.svelte
echo
rg -n -C 4 -F 'fallback for list fields without a singular noun' frontend/viewer/src/project/dashboard/DashboardView.svelte

Repository: sillsdev/languageforge-lexbox

Length of output: 2403


Move the extractor comments to the matching strings in frontend/viewer/src/project/dashboard/DashboardView.svelte. The fallback comment is attached to the empty-state prompt, and the translation context comment is attached to Total entries; both are misleading in the generated .po.

🤖 Prompt for AI Agents
Verify each finding against current code. Fix only still-valid issues, skip the
rest with a brief reason, keep changes minimal, and validate.

In `@frontend/viewer/src/locales/es.po` around lines 227 - 230, Move the extractor
comments from the generated es.po entry to their corresponding source strings in
DashboardView.svelte: place the fallback activity-log comment on the matching
list-field fallback string and the translation-context comment on “Total
entries.” Remove the misleading comments from the empty-state prompt and Total
entries entries in the generated PO output.

Source: Learnings

…eries, po comment fixes

ProjectActivity.ChangeInfo is init-only; the resolver returns enriched record copies
instead of mutating in place. RecoverDeleted fetches one latest snapshot per missing id
(Take(1) descending) instead of each entity's whole snapshot history, and the deleted-
component endpoint recovery filters to AddEntryComponentChange rows in SQL. prop() uses
key presence so an explicit camelCase null isn't conflated with absent. Added the
latest-wins dedup test for assemble-entry and made the vocab coverage test resolve paths
from import.meta.url like its siblings.

Removed five stale translator comments that had stuck to alphabetically-adjacent msgids
(Add your first entry…/Closed/Total entries/Write a reply…/(unknown)) — the comment-
preserving extraction keyed them by msgid, so they survived every re-extract since.

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
Claude-Session: https://claude.ai/code/session_01Vm9mEUzcfgX4oUPAbhcfsj
@myieye

myieye commented Jul 12, 2026

Copy link
Copy Markdown
Collaborator Author

Review absorbed in 89ef1e6. Fixed: init-only ChangeInfo with the resolver returning enriched copies; RecoverDeleted now takes one latest-snapshot query per missing id instead of loading full snapshot histories; component-endpoint recovery filters to AddEntryComponentChange in SQL; presence-based prop() lookup; the assemble-entry latest-wins test; import.meta.url paths in the vocab coverage test; and the five stale translator comments (they'd stuck to alphabetically-adjacent msgids and the comment-preserving extraction kept them alive by msgid — all 8 locales cleaned).

Skipped, with reasons:

  • Per-changeIndex previous snapshots: Harmony stores one snapshot per entity per commit, so intra-commit intermediate states would require replaying changes — a heavy lift for a case the UI already handles differently (multi-change same-entity commits collapse to an assembled tree card rather than per-change diffs). Noted as a follow-up.
  • record.changeInfo in HistoryView: HistoryLineItem has no changeInfo property — the suggestion doesn't compile. [] is the honest value until history lines get server-side resolution (follow-up).
  • Bounded LoadPreviousSnapshot query: filtering commits relative to another commit's position means comparing HybridDateTime timestamps through linq2db, which this repo documents as unsafe (strftime millisecond truncation — see AGENTS.md). The ids-list shape deliberately avoids the comparison; it loads only GUIDs.
  • ChangeSummary reformat: whitespace between inline expression nodes is not trimmed in Svelte (only block boundaries collapse) — the suggested multiline form would introduce stray spaces between the subject token and its margin-based spacing. The dense line is the file's documented spacing contract.

Generated by Claude Code

myieye pushed a commit that referenced this pull request Jul 12, 2026
…type list

Adds ActivityChangeInfoResolver: one batched pass per activity page that labels each
change with the entity it's about (entry headword with homograph subscript, 'headword › gloss'
for senses, vocab object names), the referenced item it names only by id (part of speech set,
semantic domain removed, component linked), and the root entry so the frontend can group a
commit's changes. Deleted objects are recovered from their latest snapshot so a delete can
still name its subject. ProjectActivity returns a materialized page (Task<ProjectActivity[]>)
of enriched record copies since the resolver batch-loads across it.

ChangeContext gains PreviousSnapshot (the entity's state just before the commit) so the
frontend can render true before/after diffs (#2170).

A Reinforced.Typings generator emits a ChangeType union + knownChangeTypes array from the
registered CRDT change types via the same discriminator helper the runtime uses, giving the
frontend a generated, exhaustive list to guard summary coverage with.

Part 1/6 of the activity redesign (#2434 shows the assembled result).

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
Claude-Session: https://claude.ai/code/session_01Vm9mEUzcfgX4oUPAbhcfsj
myieye pushed a commit that referenced this pull request Jul 12, 2026
Extracts a WsCode component and uses it in the editor's multi-writing-system field
labels and the dictionary preview (which opts out of the chip chrome via plain).
Chip text uses foreground/60 to clear WCAG AA on the muted fill. This gives live
editor fields visual parity with the read-only diff views that later parts of the
activity redesign introduce (part 2/6, assembled result reviewed in #2434).

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
Claude-Session: https://claude.ai/code/session_01Vm9mEUzcfgX4oUPAbhcfsj
myieye pushed a commit that referenced this pull request Jul 12, 2026
Field-level before/after components mirroring the editor's layout without its editable
widgets: multi-string and rich-text diffs (per writing system, inline text diff via
@sanity/diff-match-patch), single- and multi-selects, entry-link lists, audio diffs with
screen-reader added/removed labels, and one loose-field component covering all seven
vocab object types. Coverage tests parse the components' own rendered fields so a model
field can't silently vanish from a diff, plus an entity-config completeness guard and a
storybook gallery. No app consumer yet — the activity detail panel adopts these in part 5.

Part 3/6 of the activity redesign (assembled result reviewed in #2434).

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
Claude-Session: https://claude.ai/code/session_01Vm9mEUzcfgX4oUPAbhcfsj
myieye pushed a commit that referenced this pull request Jul 12, 2026
Activity rows now say what happened — 'Apfel › apple · Set Definition (en) to …',
'Removed semantic domain 5.2 Food' — instead of naming the change type. A pure
describeChange decoder turns each CRDT change into localization-free facts that
ChangeSummary renders as localized sentences (bold subject, muted verb, boxed data),
grouped under the entry tree they touch with an indent rail; bulk creates collapse to
one counted line; rows are capped and CSS-clamped so large commits stay one scannable
unit. Authors get stable per-author coloured icons across the project's author set.

Coverage tests are built on the generated knownChangeTypes list: they fail until every
change type has a summary (or an explicit intentionally-generic allowance) and every
create type has a bulk-collapse noun, with a reverse dead-handler guard.

Part 4/6 of the activity redesign (assembled result reviewed in #2434).

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
Claude-Session: https://claude.ai/code/session_01Vm9mEUzcfgX4oUPAbhcfsj
myieye pushed a commit that referenced this pull request Jul 12, 2026
Each change card's Preview now renders a real diff of the affected entity through the
diff-view components (previous snapshot vs at-commit snapshot, per #2170) instead of
comparing with the current version: field-level marking for edits, plain self-diff
rendering with a destructive wash for deletions, resource playback for audio commits,
and perspective-aware link-list synthesis for complex-form component changes. A commit
that only builds one entry (or one sense with its examples) collapses to a single
assembled read-only card. Card headers reuse the list's summary sentences and carry
entry navigation and History actions; a change whose context fails to load shows an
inline error card instead of a blank row.

Part 5/6 of the activity redesign (assembled result reviewed in #2434).

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
Claude-Session: https://claude.ai/code/session_01Vm9mEUzcfgX4oUPAbhcfsj
myieye pushed a commit that referenced this pull request Jul 12, 2026
Extracts Browse's split-pane plumbing into ListDetailLayout — resizable panes on
desktop, full-width list on mobile with the detail replacing it full-screen while
open, list kept mounted so its scroll survives — and renders both Browse and the
activity view through it. Activity gains the same navigation model as Browse: the
newest commit auto-selects only on desktop; on mobile a tapped row opens the detail
full-screen with a close button, driven by a detailOpen query param so the platform
back button closes it.

Part 6/6 of the activity redesign (assembled result reviewed in #2434).

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
Claude-Session: https://claude.ai/code/session_01Vm9mEUzcfgX4oUPAbhcfsj
@myieye

myieye commented Jul 12, 2026

Copy link
Copy Markdown
Collaborator Author

Closing in favour of the stacked merge sequence starting at #2435 — this PR was too large to merge in one piece. Its final head (89ef1e6, CodeRabbit review absorbed, all workflows green apart from Argos baseline approvals) is byte-identical to the tree you get after merging all six parts (claude/activity-1-backend-change-info → … → claude/activity-6-list-detail-layout), so this PR remains the reference for how the assembled feature looks and was reviewed. Only the step-1 PR is open; each next part gets its PR when its predecessor merges.


Generated by Claude Code

@myieye myieye closed this Jul 12, 2026
Sign up for free to join this conversation on GitHub. Already have an account? Sign in to comment

Labels

💻 FW Lite issues related to the fw lite application, not miniLcm or crdt related

Projects

None yet

Development

Successfully merging this pull request may close these issues.

Activity preview: want to compare before/after, not compare with current version

2 participants
